Outdoor Aluminum Alloy Glass Spigot Project — Built to Last, Designed to Impress
A Chuanlan New Materials Project Case Study
The Challenge
“We needed outdoor glass railings that could handle weather, look premium, and install cleanly on a concrete structure. Most suppliers gave us catalog products. Chuanlan gave us a solution.”
— Project Contractor, Client Team
When a residential construction contractor reached out to Chuanlan New Materials, they were mid-project on a modern multi-level home with exposed outdoor staircases and terrace balustrades. The architectural vision was bold: fully frameless glass panels, secured by minimal black aluminum spigots, flush-mounted directly into the concrete stair nosing — clean lines, unobstructed views, zero visual clutter.
The challenge was real. Outdoor installations demand more than aesthetics — they demand materials and engineering that perform under UV exposure, rain, temperature cycling, and the structural loads of a public-facing balustrade. The client had been let down before by suppliers whose products looked good in photos but failed in the field. They found Chuanlan. And this time, the result was different.
Our Product: Outdoor Aluminum Alloy Glass Spigots
① Material — 6063-T6 Aluminum Alloy
We use 6063-T6 grade aluminum — a step up from standard T5, offering higher tensile strength and better resistance to deformation under sustained load. For outdoor balustrades where structural integrity is non-negotiable, this material choice matters.
② Surface Treatment — Hard Anodizing for Outdoor Durability
Our outdoor spigots receive a hard anodizing treatment to 20–25μm depth — significantly thicker than standard decorative anodizing. This provides genuine protection against UV-induced color fading, salt spray and moisture corrosion, surface scratching, and thermal expansion stress from outdoor temperature cycling. The result: a matte black finish that looks as sharp after five years outdoors as it did on day one.
③ Precision CNC Machining — Tolerances That Matter on Site
Every spigot is CNC-machined to ±0.1mm tolerance. On a concrete staircase with multiple spigots per panel, dimensional accuracy is critical — even small variations accumulate into misaligned glass panels and difficult installations. Chuanlan spigots go in straight, stay straight, and make installers’ lives easier.
④ Internal EPDM Gaskets — Glass Protection Built In
Each glass slot is fitted with EPDM rubber gaskets — protecting glass edges from direct metal contact, accommodating minor glass thickness variations, and providing vibration damping. These are not afterthoughts; they are engineered into every unit.
How We Worked With the Client
Step 1 — Rapid Response
The client contacted Chuanlan on a Tuesday afternoon. By Wednesday morning, our technical team had responded with a detailed questionnaire covering glass thickness, concrete substrate condition, local wind load requirements, and installation timeline. No generic catalog. No waiting.
Step 2 — Engineering Proposal in 48 Hours
Within 48 hours of receiving the client’s project drawings, we delivered a complete engineering proposal including spigot selection, spacing calculations, anchor bolt specifications, and a glass panel layout drawing. The client’s contractor told us it was the most thorough pre-sales technical support they had ever received from a hardware supplier.
Step 3 — Samples Before Commitment
Before any order was placed, we shipped a physical sample set — two spigot units, a rubber gasket set, and anchor hardware — at our cost. The client’s team tested the fit on their concrete substrate and confirmed the product before committing to the full order.
Step 4 — Production Updates & On-Time Delivery
During production, we provided weekly photo updates from the factory floor. The client always knew exactly where their order was. Delivery arrived on the agreed date, with every spigot individually packaged, labeled by installation zone, and accompanied by a full installation guide and torque specification sheet.
Step 5 — Post-Installation Support
After installation, our technical team conducted a follow-up call with the contractor to confirm everything had gone smoothly. When a minor question arose about sealant specification around the base plates, we responded within 2 hours with a written recommendation. That level of after-sales responsiveness is what turns a one-time transaction into a long-term partnership.
The Result

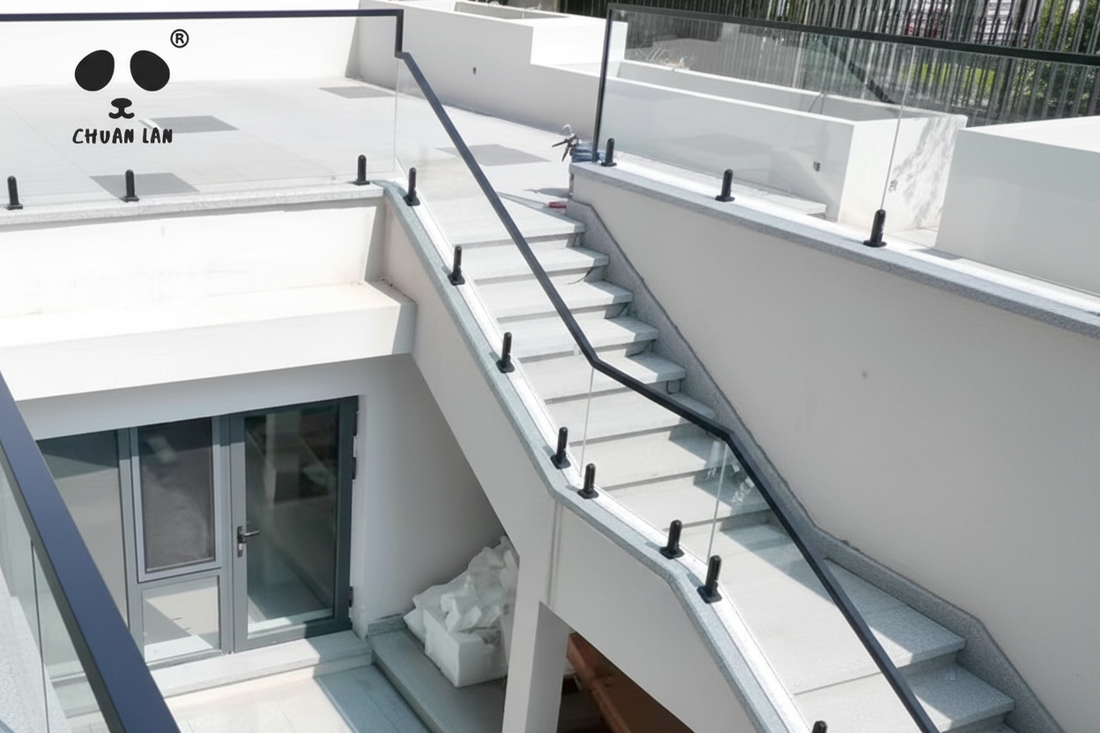

The completed installation speaks for itself. Black aluminum spigots evenly spaced along the stair nosing, frameless glass panels rising cleanly above, a continuous handrail running the full length of the staircase — exactly the architectural vision the client had from day one.
- ✅ Full delivery on schedule — zero delays
- ✅ All spigots installed without field modification — dimensional accuracy confirmed
- ✅ Hard anodized finish consistent across all units — no color variation
- ✅ Glass panels seated perfectly in every spigot — EPDM gaskets performed as specified
- ✅ Contractor sign-off with zero deficiencies
- ✅ Long-term supply agreement signed — Chuanlan is now the contractor’s preferred glass spigot supplier across all future projects
Why This Contractor Now Specifies Chuanlan on Every Project
| What They Needed | What Chuanlan Delivered |
|---|---|
| Fast technical response | Engineering proposal within 48 hours |
| Outdoor-grade durability | 6063-T6 alloy + 20–25μm hard anodizing |
| Dimensional accuracy | ±0.1mm CNC tolerance, zero field adjustments |
| Reliable delivery | On-time, labeled, installation-ready packaging |
| After-sales support | 2-hour response time post-installation |
| Long-term supply reliability | Dedicated account management, consistent stock |
Specify Chuanlan on Your Next Outdoor Glass Railing Project
Whether you are working on a residential villa, a commercial terrace, or a hospitality rooftop, Chuanlan’s outdoor aluminum glass spigots deliver the quality, durability, and engineering support your project demands.
- Free engineering consultation and layout drawings
- Physical samples before order commitment
- Factory-direct pricing — no middlemen
- Custom finishes: matte black, brushed silver, champagne gold, or RAL custom
- Global export capability with reliable logistics
📩 Contact our engineering team today — we respond within 24 hours.
🌐 www.chuanlanltd.com
About Chuanlan New Materials
Sichuan Chuanlan New Materials Co., Ltd. is a direct manufacturer of premium aluminum alloy and stainless steel architectural hardware, specializing in glass spigots, railing systems, handrail fittings, and structural connectors for residential, commercial, and hospitality projects worldwide. From factory floor to project site, we deliver precision, quality, and partnership — every time.
